As graphics cards grow more powerful and power-hungry, the standards behind PC power delivery are evolving to keep up. Enter the 12VHPWR connector—a compact, high-capacity power connector designed to meet the demands of today’s and tomorrow’s cutting-edge GPUs. Whether you’re building a next-gen gaming rig or upgrading your workstation, understanding the 12VHPWR connector is key to staying ahead.
What Is the 12VHPWR Connector?
Introduced as part of the ATX 3.0 power supply standard, the 12VHPWR (12 Volt High Power) connector is a 16-pin interface that can deliver up to 600 watts of power through a single cable. This replaces the bulkier, multi-cable setups required by previous high-end GPUs—such as three 8-pin PCIe connectors—with a more streamlined and efficient solution.
The 12VHPWR is made up of:
- 12 power pins for high-current delivery
- 4 sense pins that communicate power needs and connection status to the PSU
This architecture enables not just higher performance, but also smarter power management between the GPU and PSU.
Why the Change?
The shift to 12VHPWR is driven by real needs:
- Higher power demands from GPUs like NVIDIA’s RTX 4090 and beyond
- Improved efficiency with less power loss and better thermal performance
- Simplified cabling that improves airflow and aesthetics in PC builds
Rather than cluttering your case with multiple 8-pin connectors, the 12VHPWR cable provides a clean, single-cable alternative that’s easier to manage and safer to use.

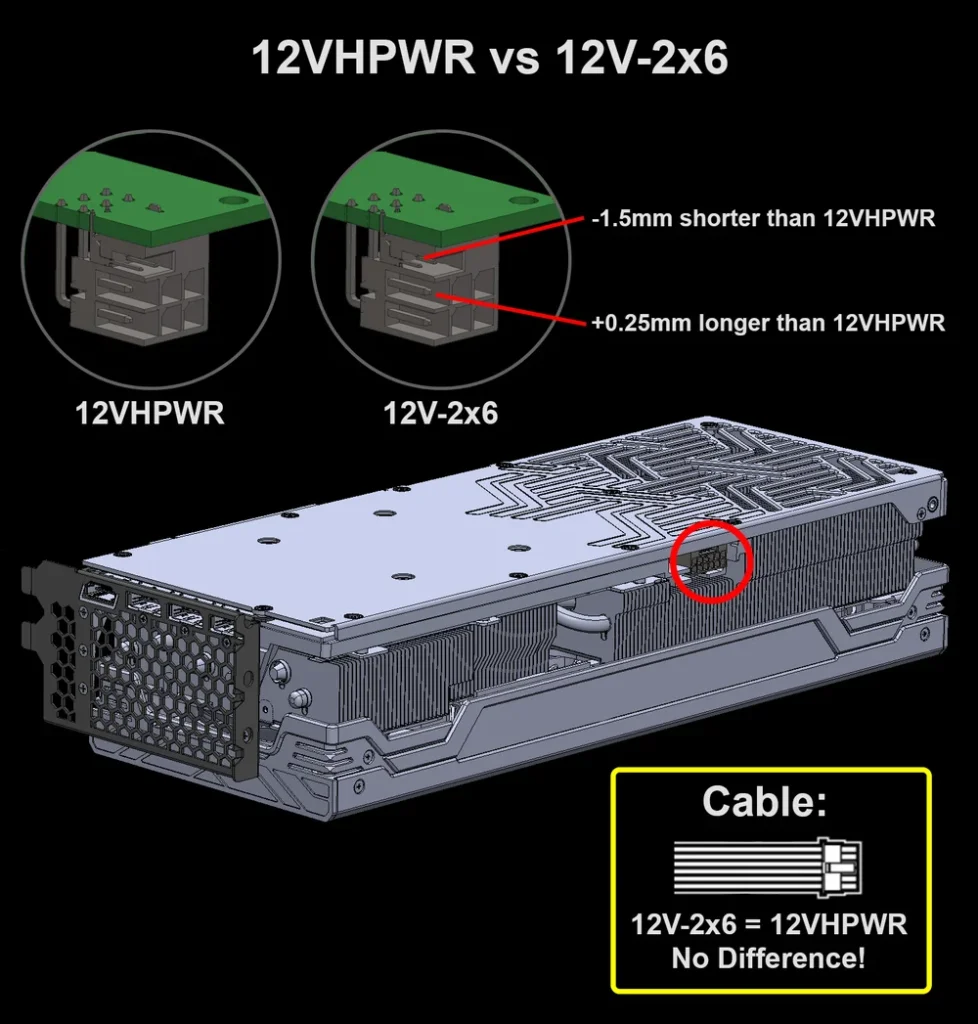

Enter 12V-2×6: A Safer Evolution
Despite the clear benefits, the original 12VHPWR rollout wasn’t without hiccups. Improperly seated connectors led to rare but serious issues such as melting connectors and power failures.
To solve this, the 12V-2×6 standard was introduced. It’s physically identical to 12VHPWR but includes shorter sense pins that only allow power to flow once the connector is fully and securely inserted. This subtle change significantly improves safety while retaining full backward compatibility with 12VHPWR cables and devices.
Do You Need a New PSU?
If you’re planning to use a GPU with a 12VHPWR port, your options are:
- Use a native ATX 3.0 PSU with a built-in 12VHPWR cable – the safest and most reliable option
- Use an adapter with an older PSU – works, but can be riskier if not installed carefully
- Check for 12V-2×6 support – some modern PSUs are starting to include these improved cables even if they’re not fully ATX 3.0-compliant
At Pico Box, we recommend choosing a PSU with native support for 12VHPWR or 12V-2×6 to ensure stability, performance, and peace of mind.
Final Thoughts
The 12VHPWR connector is more than just a new plug—it’s a response to the real needs of modern computing. As power demands continue to rise, adopting this standard now helps ensure your build is ready for the future.
